Huixian Xinda Textile Machinery Parts Co., Ltd. provides AC/2S Release Gripper / Carrier Gripper Rapier loom accessories. The material of the sword shell for the weft feeding and weft receiving sword heads is nylon, and the weft feeding sword head is detachable and assembled, with a total length of 346mm, a total front length of 149mm, a width of 18mm at the yarn passing plate, a diameter of 3.8mm for the flat circular hole, and a length of 221mm (including the part embedded with 25mm) for the sword shell installed at the rear.

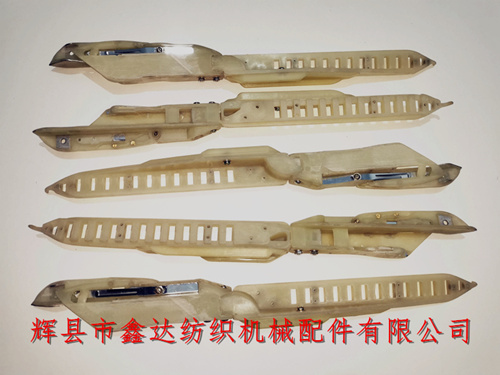

The two near the top in the above figure are the weft receiving sword heads, and the two below are the weft sending sword heads; The inner width of the front bottom of the weft feeding sword head is 13mm (at the intersection with the weft receiving sword head), the inner width of the rectangular hole in the sword belt is 5mm, and the inner length is 11.8mm; The spacing between the bottom support bars is 6mm, and the overall support width is 17.6mm.
There is a nylon guide slot on the side of the weft feeding sword shell, with a width of 19.5mm and a length of 117.3mm. The inner width of the guide slot is 9.4mm, and the wall thickness is different between the top and bottom, with 7mm above and 2.8mm below. The weight of a single weft feeding sword head is 100g.
The above picture shows the AC/2S weft connection rapier head, with a total length of 380mm and an overall width of 25mm (the width at the position where the rapier belt is installed is 19mm and the width of the bottom protrusion is 17mm). The total height is 27mm, and the total length of the large hook head is 188mm and the width is 9mm. There is a groove at the front of the lower part, which is lifted up by the spring plate combination below. There is a nylon strip in the middle for isolation, and a nylon right angle limit block (width 15mm and height 7mm) on the inner side for control.
The weight of a single weft receiving sword head is 160 grams. The total length of the nylon guide plate on the side is 231mm, the width of the outer side is 20mm, and the width of the inner side is 17mm (at the intersection with the weft sending sword, wrapping the front of the weft sending sword). If you need to purchase AC/2S sword heads, Release Gripper heads, weft Carrier Gripper heads, Schumet accessories, loom accessories and other products, please contact Mr. Yang of our company. The minimum order quantity is 10 pieces, and the delivery time is 5-8 days!
